BTS256-LED Spectroradiometer - Precise, Accurate, In-Situ Measurement of LED Performance (UV, VIS, NIR)

The BTS256-LED Spectroradiometer is the ultimate solution for professionals seeking accurate and efficient characterization of LEDs and LED based products.

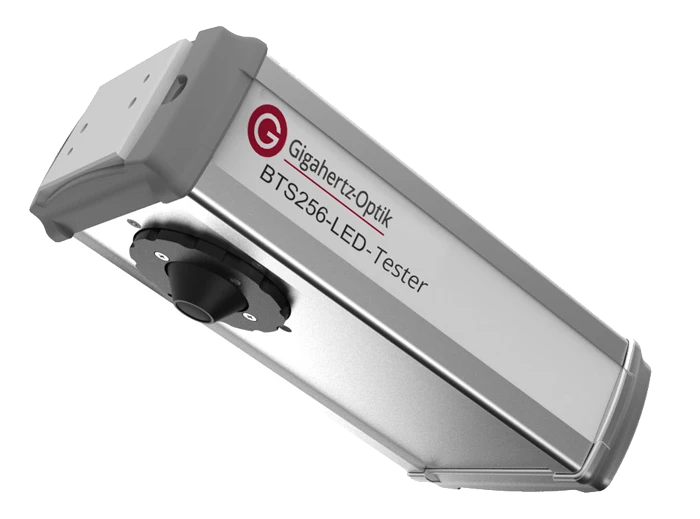

BTS256 LED

Choose the industry standard setter.

Cutting-Edge Precision and Reliability for Advanced LED Testing

  1. Comprehensive Measurement Capabilities

  2.  Ensuring precise and reliable data

  3. Compact Design for Versatility

  4. User-Friendly Software

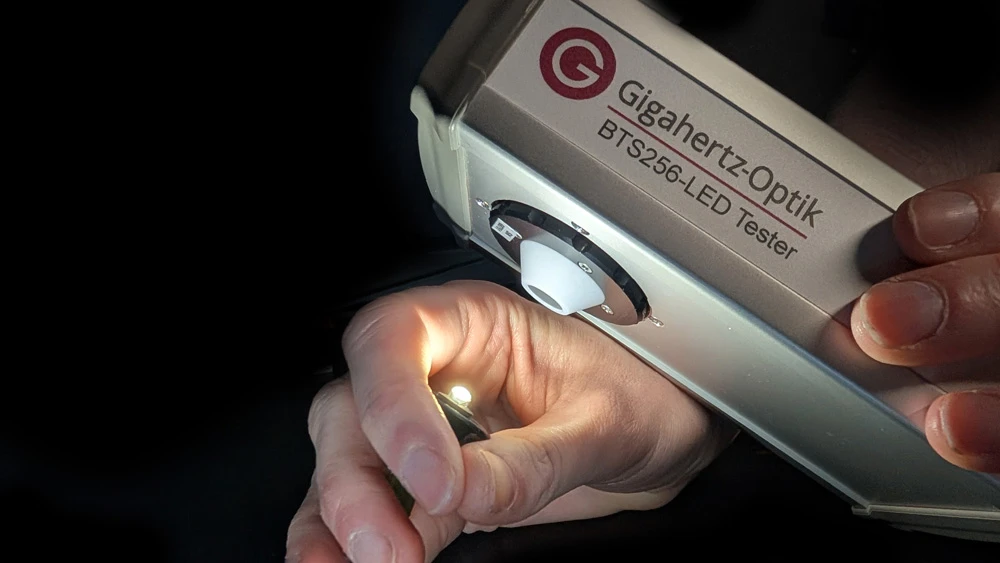

Compact UV, VIS and NIR LED Tester

This portable device provides performance! Precise, in-situ testing for UV, Visible, and NIR LEDs directly on PCBs. It features a small integrating sphere with a cone-shaped measurement port and an auxiliary lamp for self-absorption correction. Key capabilities include:

  • Accurate Measurements: Spectral radiant power, peak intensity, wavelength, and spectral distribution.
  • Radiant power: 1 µW to 10 W (version-dependent)
  • Spectral range: UV (200–550 nm), VIS (360–830 nm), NIR (750–1050 nm).
  • Traceable Calibration: Ensures accuracy and repeatability
BTS256 LED Tester

Versatile spectroradiometer for precise LED measurements

  • Goods-in inspection of individual LEDs
  • Quality assurance of assembled LEDs in production processes
  • Research and development testing
  • Precision bayonet mount for interchangeable conical ports and accessories
  • Add-on options include large integrating spheres and goniometers

Compact, with Powerful Features

  1. Internal integrating sphere
  2. BiTec sensor (CMOS diode array and broadband photodiode)
  3. Remote controlled auxiliary lamp and shutter
  4. Fast data logger for radiant power / luminous flux
  5. Application software for data analysis + SDK support

BTS256 LED Tester

Further LED measurement solutions from Gigahertz Optik

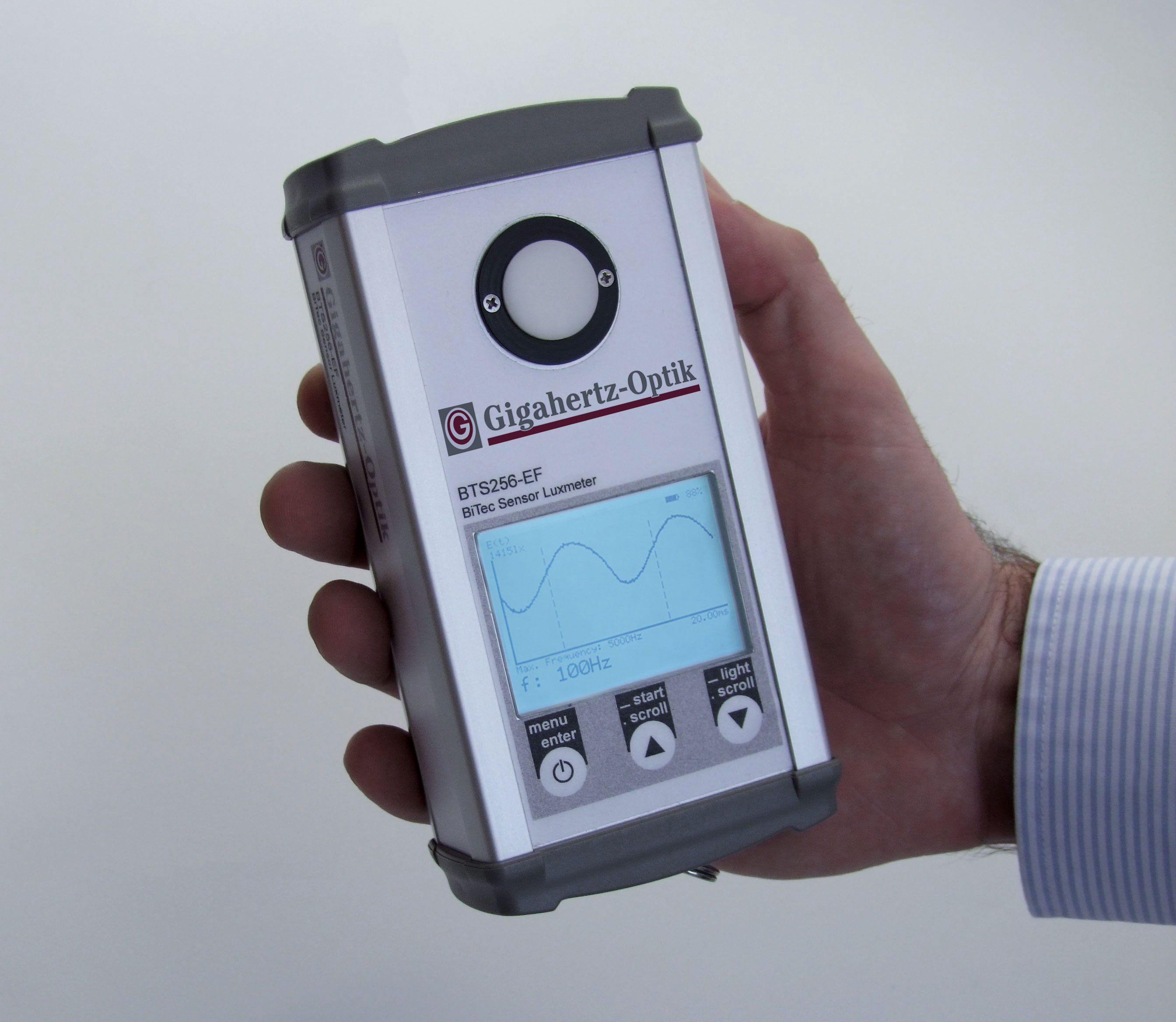

BTS256-EF

BTS256-EF Spectral light and flicker meter

High accuracy meter with a sampling rate up to 200 kHz, for flicker analysis (CIE TN-006, IEC TR 63158, and IEEE 1789-2015) as well as illuminance, spectral irradiance, photopic and melanopic illuminance, PAR, CCT, CRI, and color coordinates.

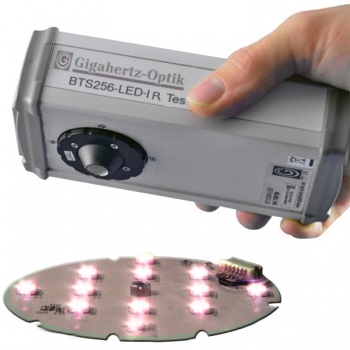

BTS256-LED-IR

BTS256-LED-IR - IR LED Tester

Compact spectroradiometer for measuring the radiant power (W) of VIS and NIR LEDs (750 nm to 1100 nm). In-situ and on-board measurement of LEDs.

ISD-15-BTS2048-VL

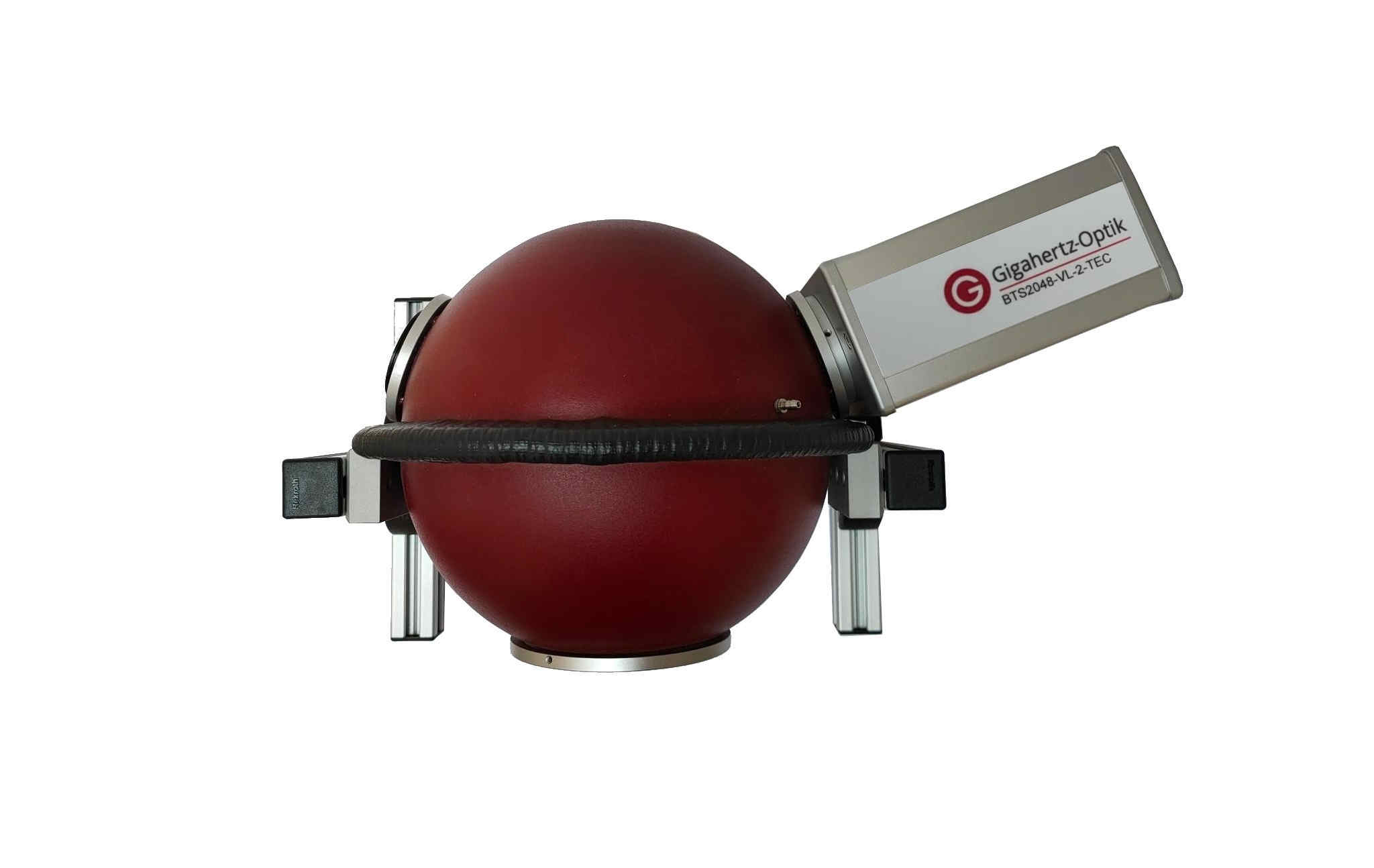

ISD-15-BTS2048-VL - Compact integrating sphere

A compact, "plug-and-play" module for luminous flux measurements with a 15 cm diameter integrating sphere and a high-precision spectroradiometer.

ISD-21-BTS256-LED

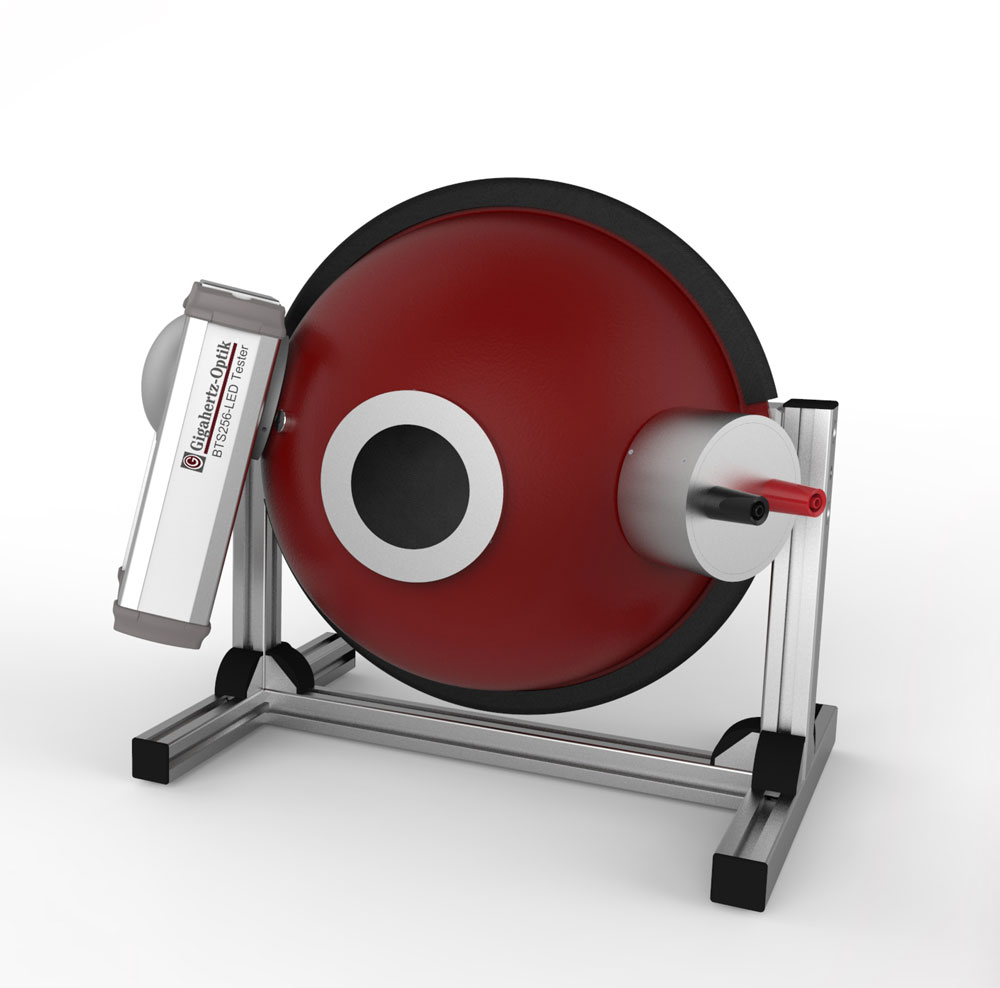

ISD-21-BTS256-LED - Integrating sphere with a 21 cm diameter for luminous flux and color

The combination of the BTS256-LED and the 21 cm integrating sphere is ideal for luminous flux, color and spectral measurements of LED lamps with a diameter of up to 63.5 mm.

ISD-100HF-BTS256-LED

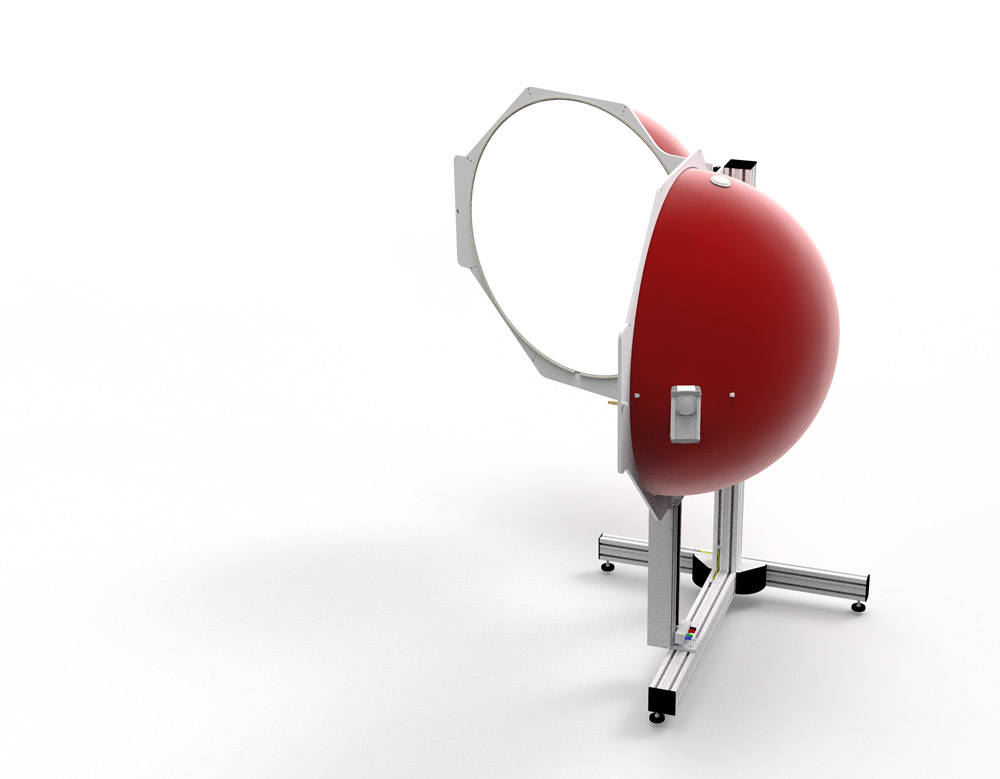

ISD-100HF-BTS256-LED - Integrating sphere with 100 cm aperture

Spectroradiometer with a 100 cm diameter integrating sphere, fully openable for easy lamp placement in the sphere's center. Optionally available with a connection port for directional lamp measurements.

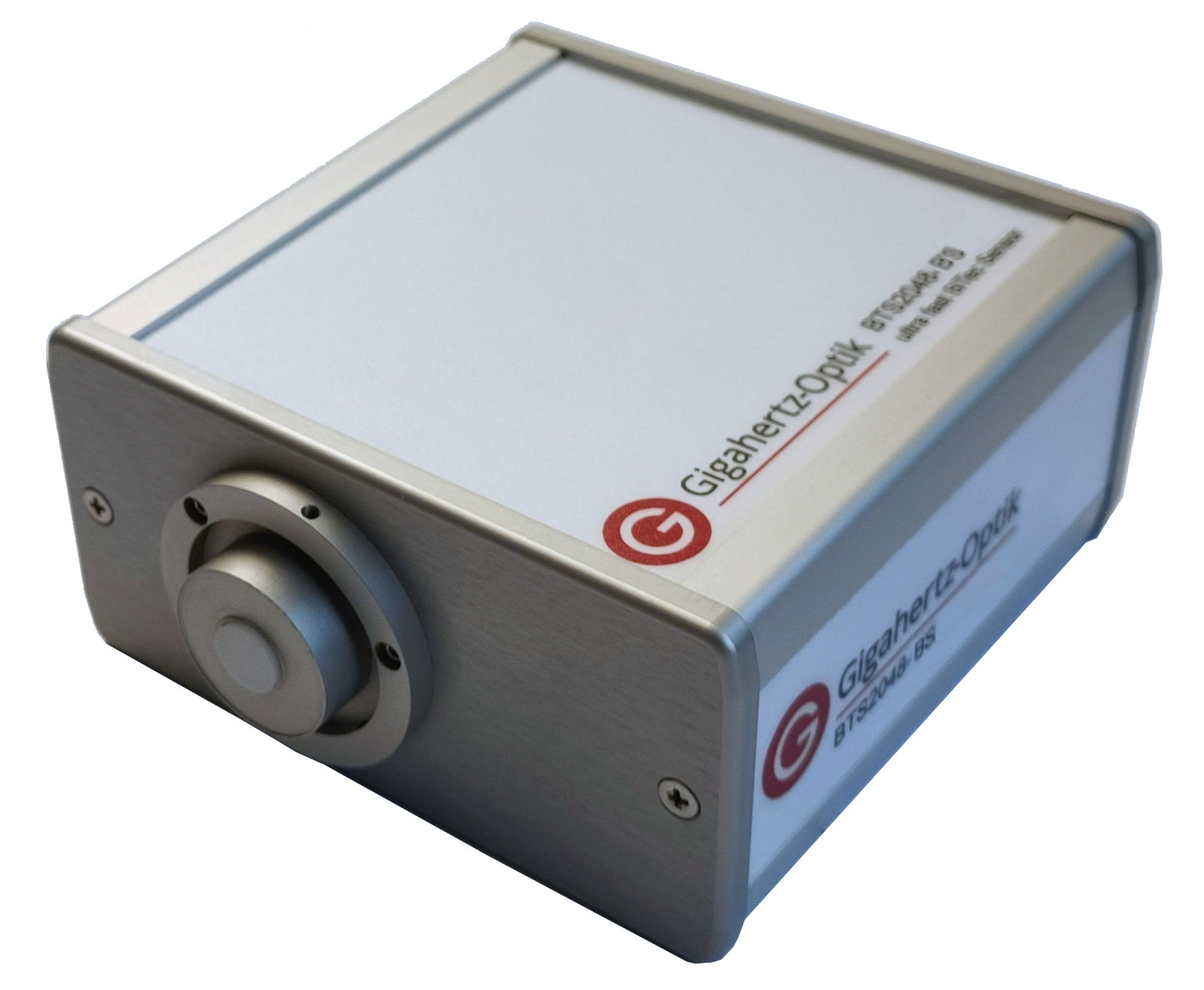

BTS2048 Serie

BTS2048 Series – Laboratory Spectroradiometer

Compact UV-Vis-NIR spectroradiometers with excellent optical performance and BiTec technology for precise measurements.

DCP Teststation

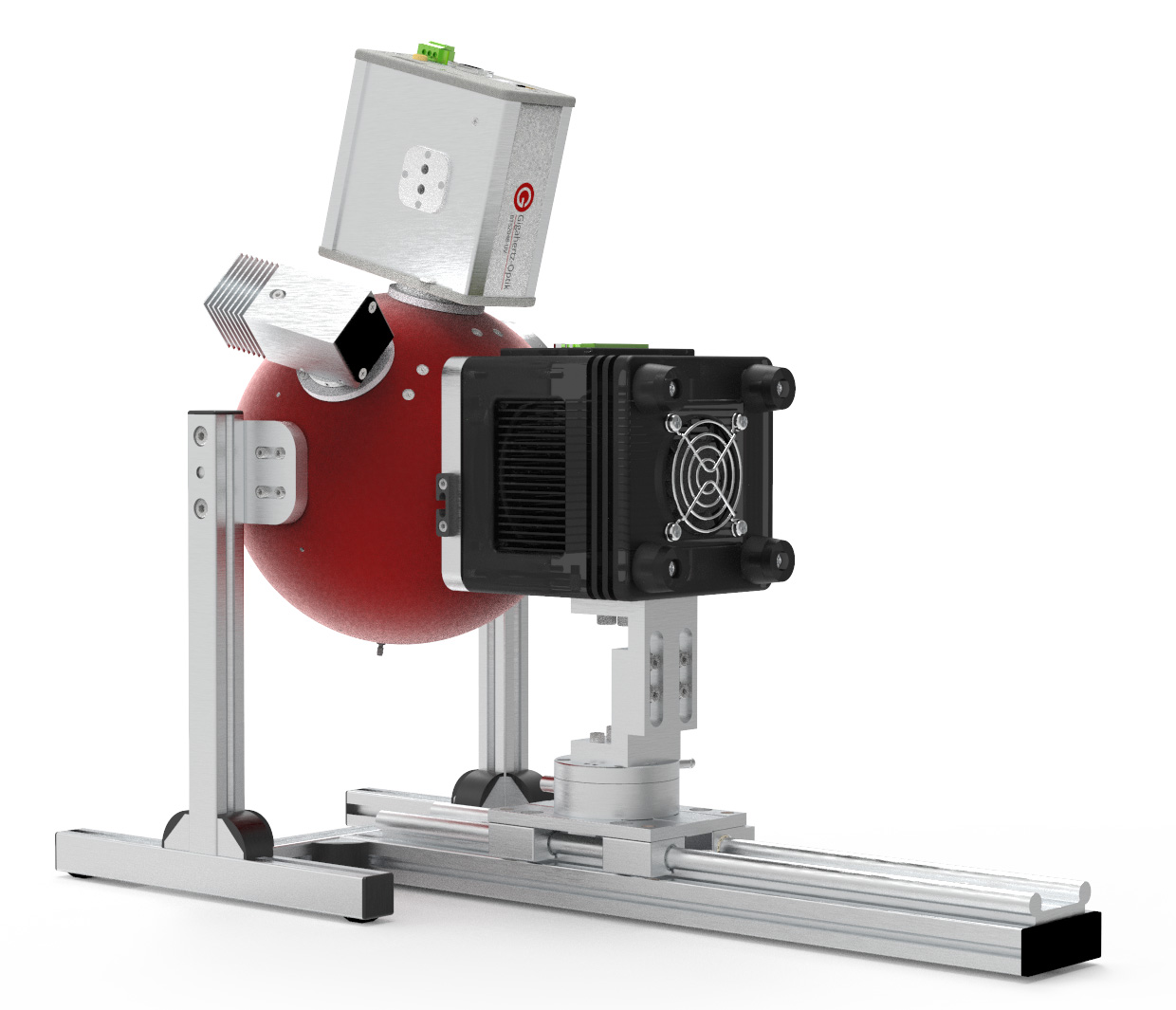

DCP LED Test Station for Radiant Power of UV LEDs

Turnkey spectroradiometer system for IES LM-92 / CIE TC2-91 (DCP method) for high precision measurement of UV LEDs. SMU provides precise current settings for short pulses and sweeps.

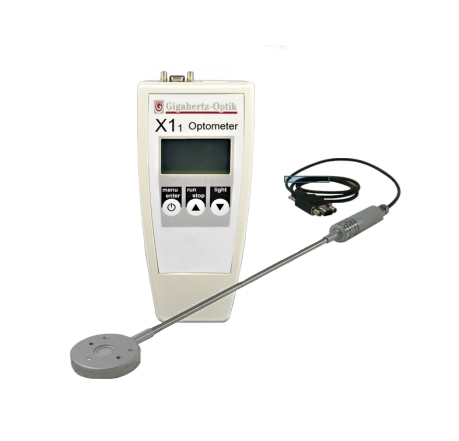

X1 1 RCH 116 4

X1-RCH-116 LED UV Curing Meter

UV Curing Radiometer for high intensity LED (UV-A and Blue) irradiation in UV curing processes

CSS-45

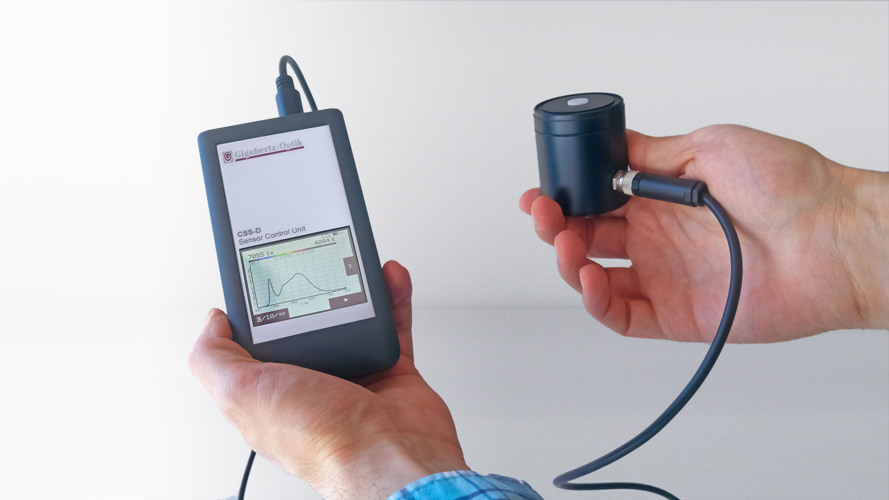

CSS-45 Compact spectral light sensor

Compact and cost effective spectral light detector for conventional and LED lighting. Spectral irradiance (360nm - 830nm), illuminance, CCT, CRI, PAR, etc with USB and RS-485 interfaces.

GB-GD-360-RB40-2-BTS2048-VL

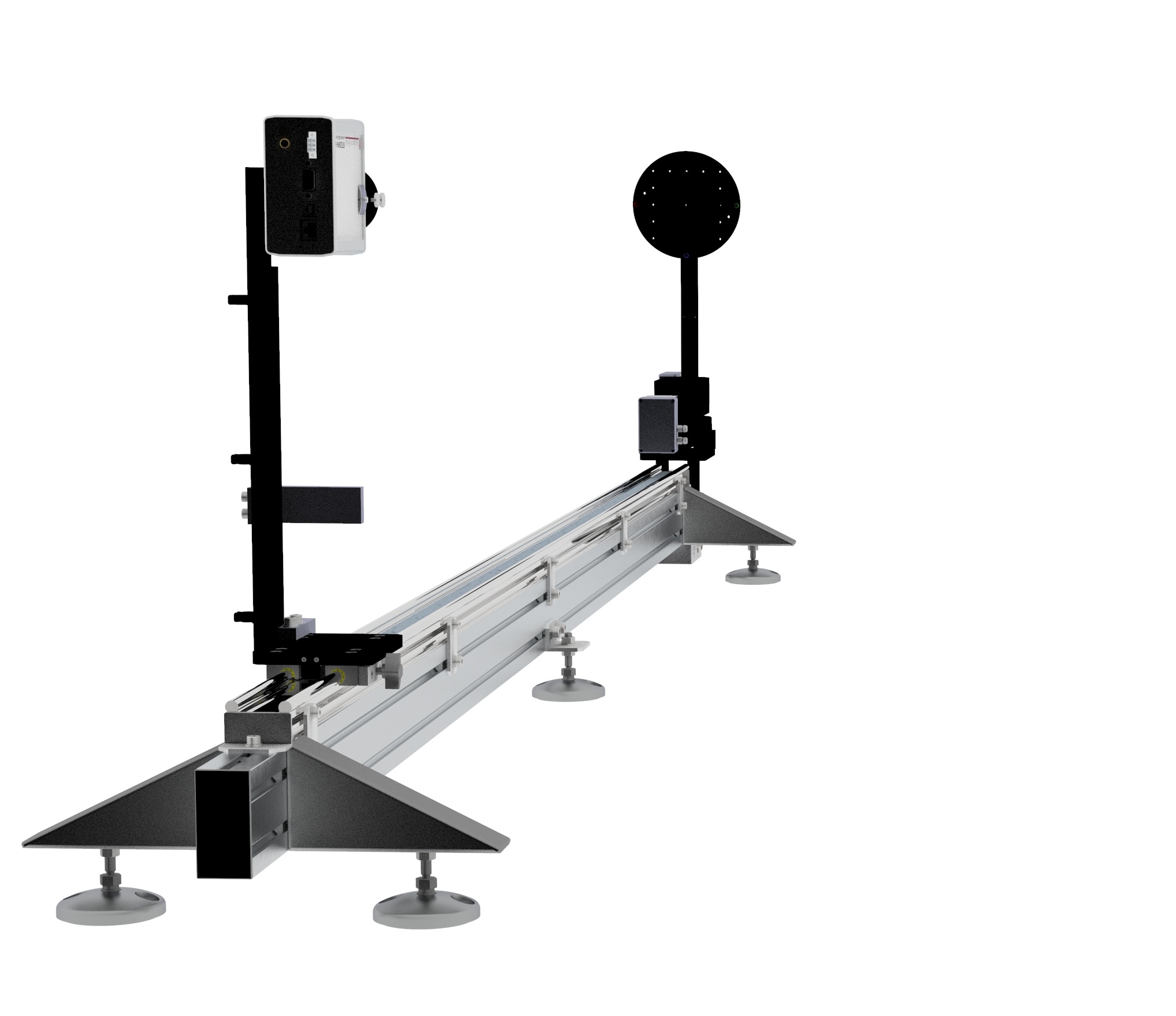

GB-GD-360-RB40-2-BTS2048-VL

Goniometer for 2π LED light sources for measuring luminous intensity distribution (IES, EULUMDAT), spectrum, color, and color rendering. The high dynamic range of the spectroradiometer enables the measurement of sharply profiled light beams.

MSC15

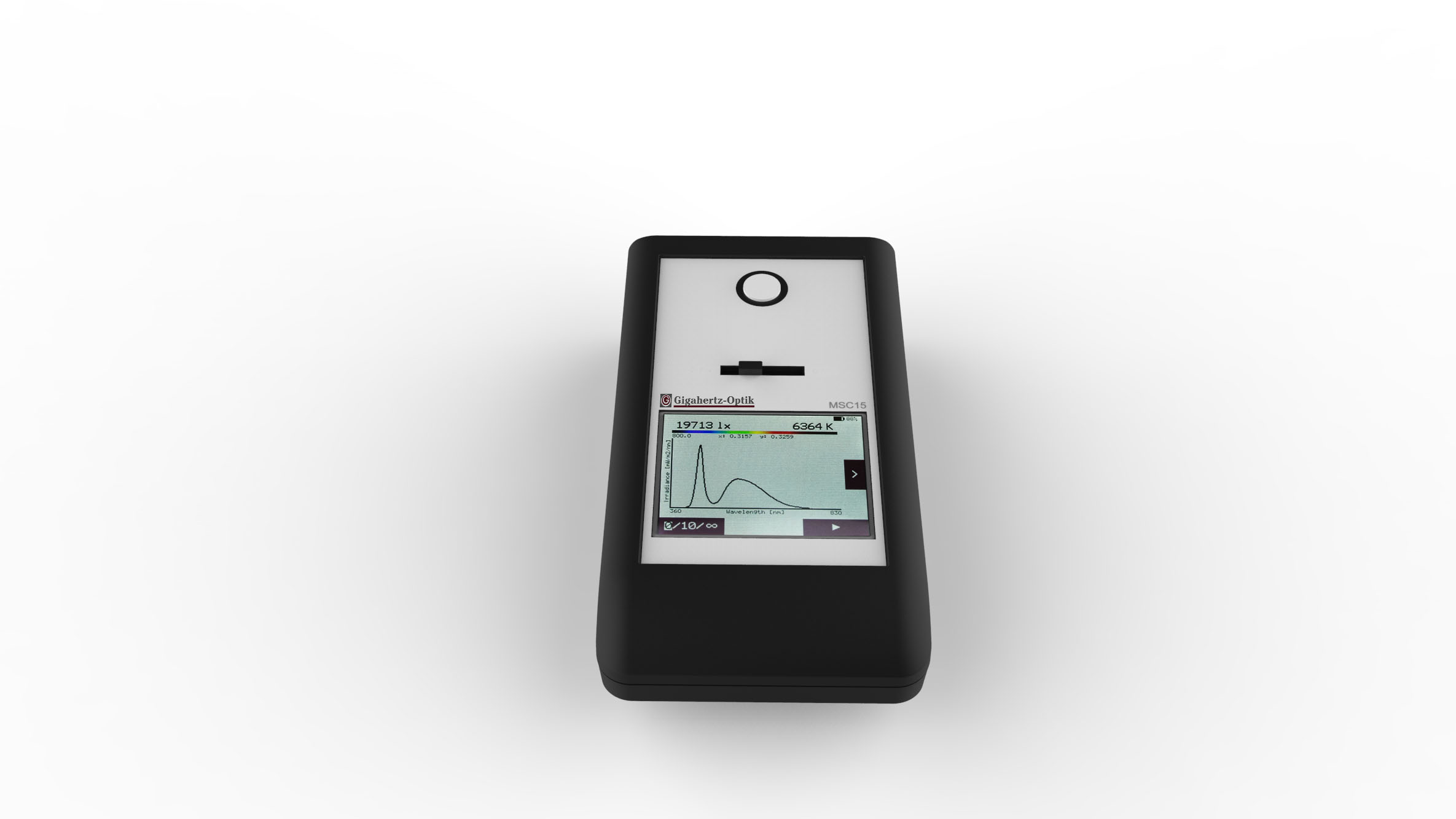

MSC15 - Spectral Light Meter

A cost-effective, compact, and portable spectral light meter. Measures over 30 different light and color parameters, including circadian and PAR values.

LIGHTmetric ONE

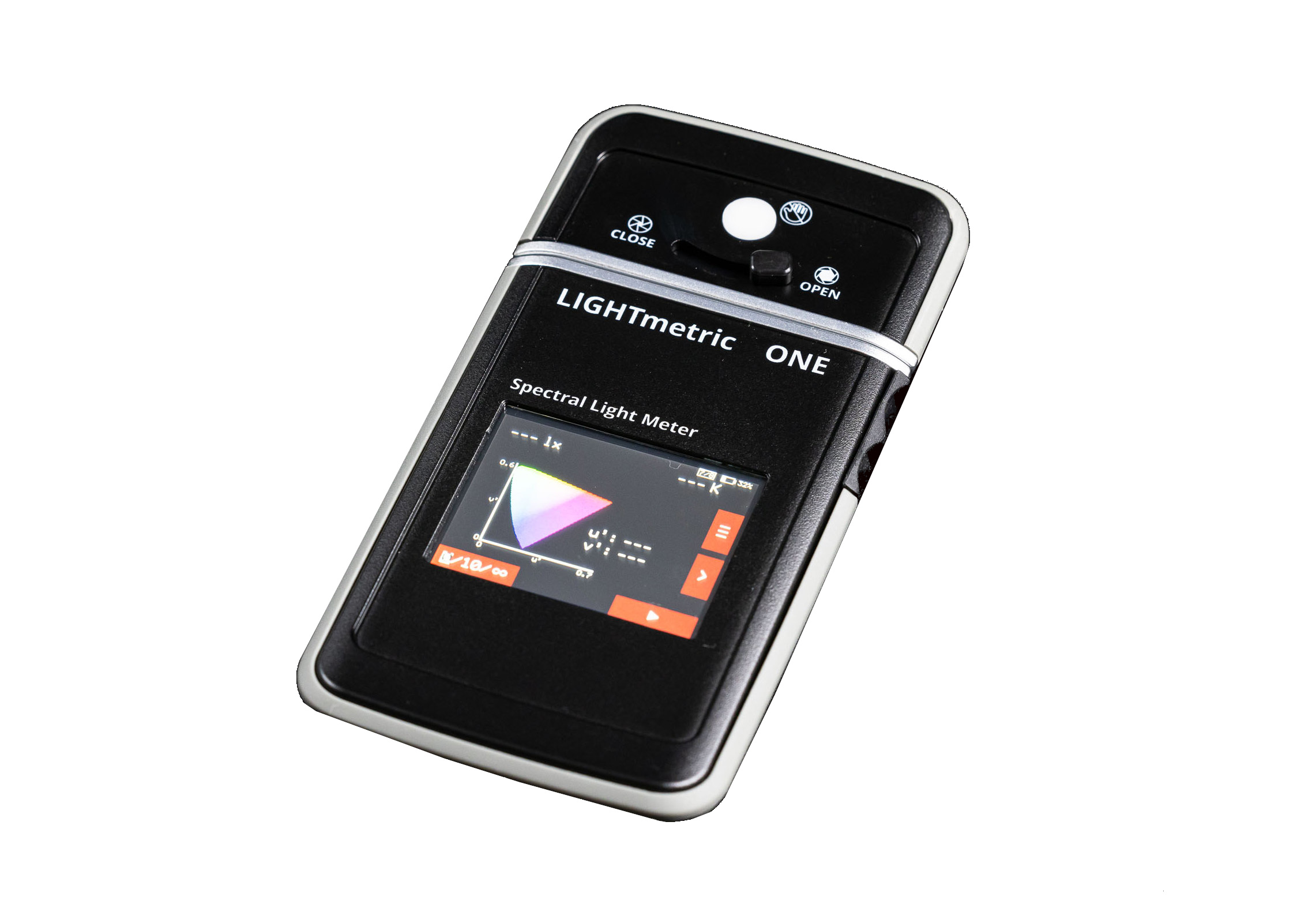

LIGHTMetric ONE – Spectral Light Meter with Bluetooth

Portable spectral light meter with rotatable sensor. Controlled via iOS and Android app. Comprehensive light and color analysis. Calibration traceable to ISO 17025.

Header LEDMeasurement Inc


Precision You Can Trust

Explore our accredited calibration laboratory for highly accurate optical measurements

Precise & Traceable Calibration - ISO 17025

You can rely on the calibration in precision and traceability.

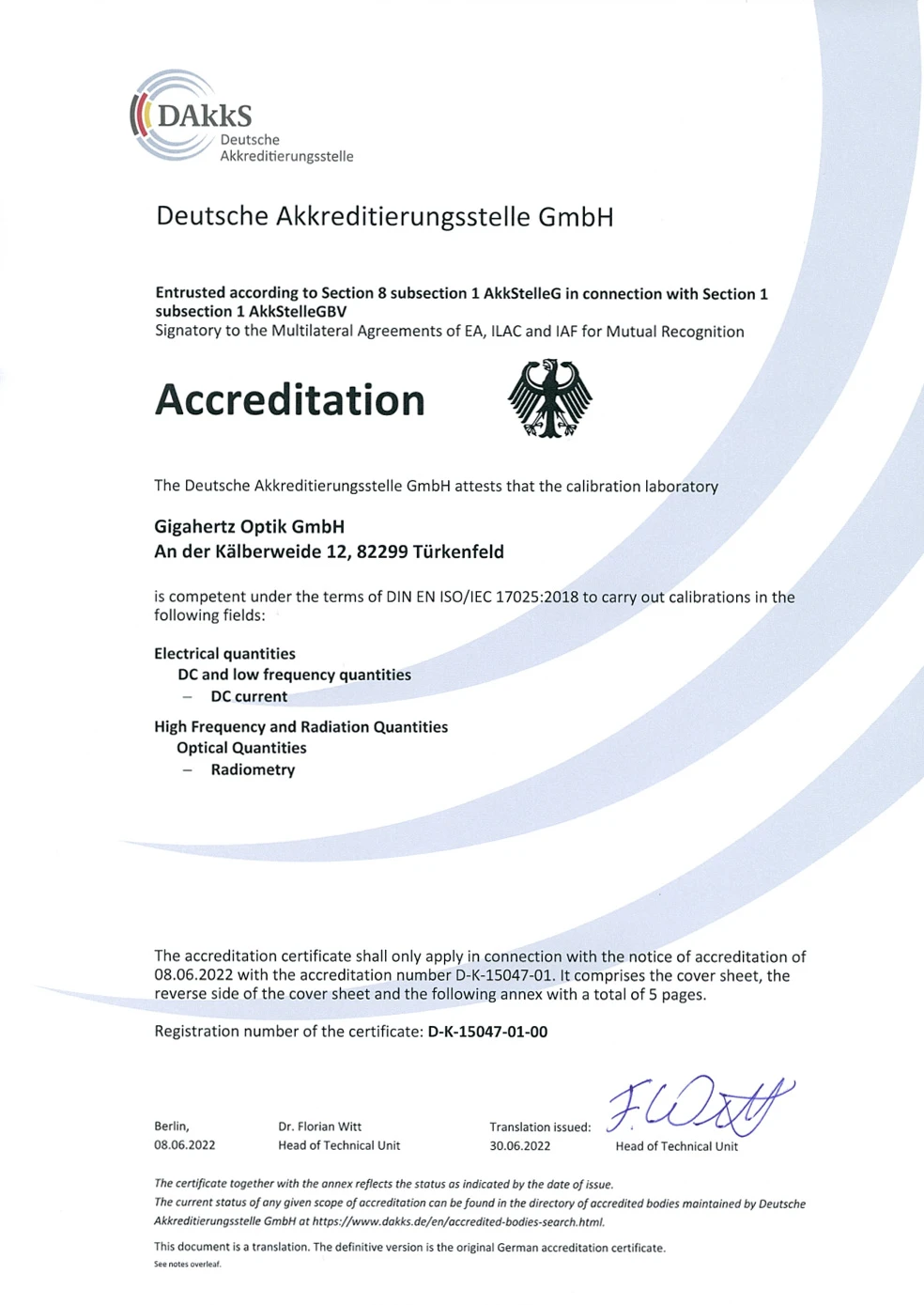

Gigahertz-Optik’s ISO/IEC 17025 calibration laboratory is accredited by DAkkS (D-K-15047-01-00), meeting ISO/IEC 17025 specifications for spectral responsivity and spectral irradiance.

The device offers different calibrations saved in the device:
  1. Calibration using a specially developed reference lamp with 2pi illumination. This gives you precise measurement of the luminous flux of diffusely emitting UV LEDs.
  2. Calibration for sources with narrower illumination characteristics.
  3. Optional calibrations on an external sphere, illuminacne adapter, etc.

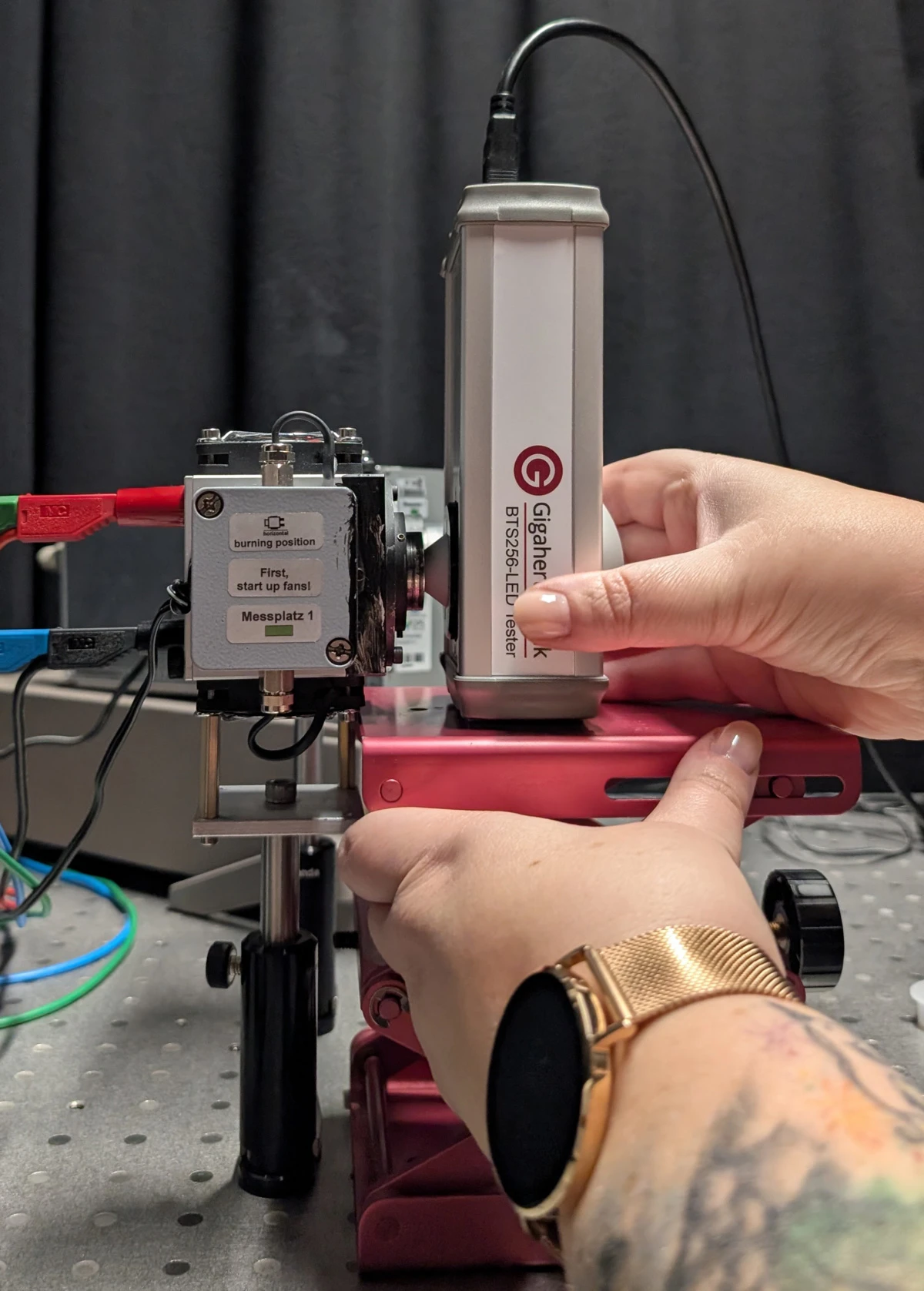

Calibration Lab
Calibration Lab

Germany and USA

US Calibration Laboratory for short recalibration time

For the shortest possible recalibration lead times and top service, in addition to the German GmbH calibration laboratory at our headquarters in Türkenfeld near Munich, we have set up another calibration laboratory at our subsidiary in the USA. Contact our colleagues in the US to use this service if it is geographically advantageous for you.
